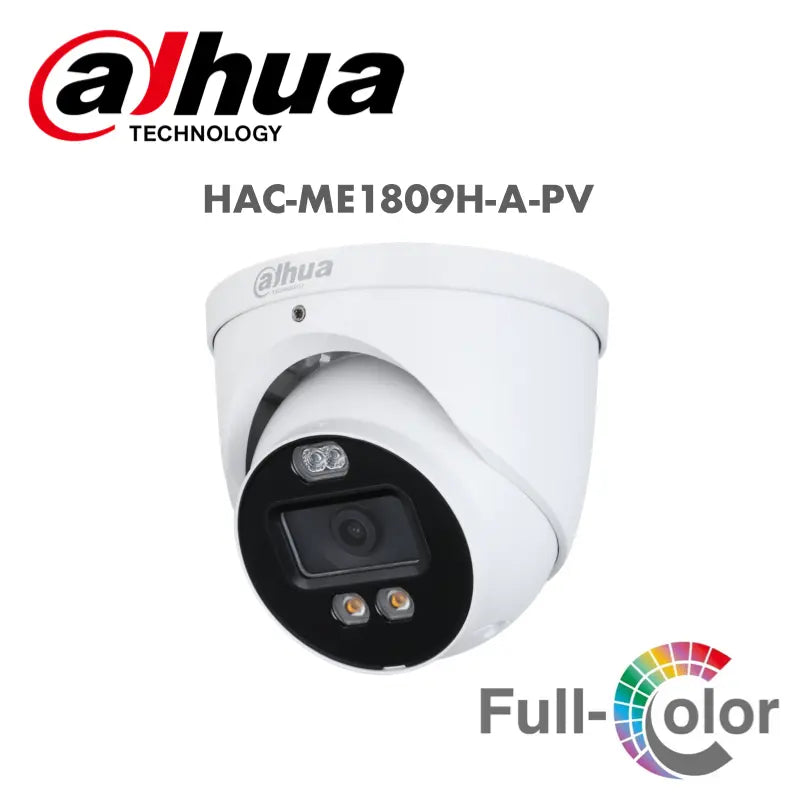

Dahua 4K Full-Color Active Deterrence Eyeball HDCVI Camera HAC-ME1809HP-A-PV(S2)
Model No: DHI-HAC-ME1809H-A-PV
- Sku: DHI-HAC-ME1809HP-A-PV
Description
The Dahua HAC-ME1809H-A-PV is a 4K Smart Dual Light TiOC HDCVI Eyeball Camera designed to provide high-resolution surveillance with active deterrence capabilities. Featuring Smart Dual Light technology, it intelligently switches between IR and white light to deliver clear color images while minimizing false alarms. The camera supports active deterrence through red and blue lights, siren, and alarm outputs, making it ideal for preventing unauthorized access. Built-in audio via a microphone enhances monitoring, and its robust IP67-rated housing ensures reliable outdoor performance.
This model supports 4K video at 15 fps, 120 dB true WDR, 3D noise reduction, and Super Adapt for superior image quality in various lighting conditions. It includes a fixed lens (3.6 mm standard, 2.8 mm optional) and multiple video outputs (CVI/CVBS/AHD/TVI) for flexible integration with existing systems.
Key Features
- 4K resolution at 15 fps
- Smart Dual Light technology for clear color imaging
- Active deterrence with red/blue lights, siren, and alarm out
- Protection against red-blue light interference
- 120 dB true WDR and 3D NR
- 40 m illumination distance
- Built-in microphone for audio capture
- Fixed lens: 3.6 mm (2.8 mm optional)
- CVI/CVBS/AHD/TVI switchable output
- IP67-rated weatherproof housing
|
Camera |
|||||
|
Image Sensor |
4K CMOS |
||||
|
Max. Resolution |
3840 (H) × 2160 (V) |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
PAL: 1/3 s–1/100000 s |
||||
|
Min. Illumination |
0.001 lux@F1.0 (Color, 30 IRE) |
||||
|
S/N Ratio |
>65 dB |
||||
|
Illumination Distance |
IR: 40 m (131.23 ft) |
||||
|
Illuminator On/Off Control |
Auto/Manual |
||||
|
Illuminator Number |
2 (Warm light);2 (IR light) |
||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–360° |
||||
|
Lens |
|||||
|
Lens Type |
Fixed-focal |
||||
|
Auto Focus |
No |
||||
|
Lens Mount |
M12 |
||||
|
Focal Length |
2.8 mm; 3.6 mm |
||||
|
Max. Aperture |
F1.0 |
||||
|
Field of View |
2.8 mm: H: 106°; V: 55°; D: 125° |
||||
|
Iris Control |
Fixed |
||||
|
Close Focus Distance |
2.8 mm: 2.0 m (6.56 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
2.8 mm |
91.0 m (298.56 ft) |
36.4 m (119.42 ft) |
18.2 m (59.71 ft) |
9.1 m (29.86 ft) |
|
|
3.6 mm |
107.6 m (353.02 ft) |
43.0 m (141.08 ft) |
21.5 m (70.54 ft) |
10.8 m (35.47 ft) |
|
|
Video |
|||||
|
Video Frame Rate |
CVI: |
||||
|
Resolution |
4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480) |
||||
|
Day/Night |
Auto(ICR)/Color/B/W |
||||
|
BLC |
BLC; HLC; WDR; HLC-Pro |
||||
|
WDR |
120 dB |
||||
|
White Balance |
Auto;Area white balance |
||||
|
Gain Control |
Auto/Manual |
||||
|
Noise Reduction |
3D NR |
||||
|
Illumination Mode |
Smart IR&WL; WL Mode; IR Mode |
||||
|
Defog |
Electronic defog |
||||
|
Digital Zoom |
4× |
||||
|
Mirror |
Yes |
||||
|
Privacy Masking |
Off/On (8 areas, rectangle) |
||||
|
Active Deterrence |
|||||
|
Sound Warning |
Audio 1: alarm |
||||
|
Red/Blue Light Warning |
Flash: 5 s–60 s; frequency: high/medium/low |
||||
|
Certification |
|||||
|
Certifications |
CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017) |
||||
|
Port |
|||||
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
||||
|
Audio Input |
One channel built-in mic |
||||
|
Alarm Output |
1 channel |
||||
|
Power |
|||||
|
Power Supply |
12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera) |
||||
|
Power Consumption |
Max 10.45 W (12 VDC, IR on) |
||||
|
Environment |
|||||
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||
|
Operating Humidity |
<95% (RH), non-condensing |
||||
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||
|
Storage Humidity |
<95% (RH), non-condensing |
||||
|
Protection |
IP67 |
||||
|
Anti-corrosion Level |
Low |
||||
|
Structure |
|||||
|
Casing Material |
Metal |
||||
|
Product Dimensions |
Φ122.0 mm × 110.9 mm (Φ4.80" × 4.37") |
||||
|
Net Weight |
0.72 kg (1.59 lb) |
||||
|
Gross Weight |
0.96 kg (2.12 lb) |
||||
|
Installation |
Wall mount; ceiling mount; vertical pole mount |
||||
