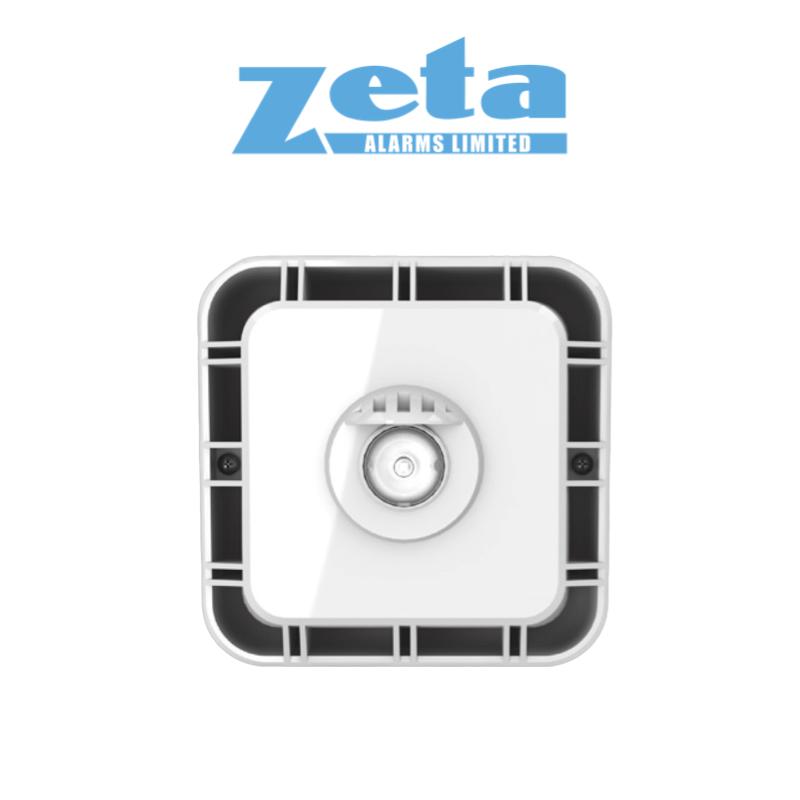

Zeta Xtratone MKII Addressable Combined Sounder & Beacon in Red or White MKII-AXTB

Model No: MKII-AXTB

  • Sku: MKII-AXTB/W
£66.64 GBP
 per
Tax included.
Shipping calculated at checkout.
Color

Description

  • 102dB @ 1m sound output.
  • 16 tones can be selected from control panel Flash rates between 0.33Hz and 1.5Hz.
  • Hard addressed via 8 way dip-switch.
  • Flush or surface fixing.
  • Housed in UL V0 flame retardant ABS.
  • 4 x 20mm cable entries (2 top, 2 bottom).
  • First fix, wire to back box technology.

Specification

  • Operating Voltage : 17 – 28V DC
  • Quiescent Current : 1.5mA
  • Alarm Current : 18 to 43mA
  • Sound Output : 96dB
  • Colour :
    • Red body, Clear Flash
    • White body, Clear Flash
  • Minimum Continuous Operating Temperature : 0°C
  • Operating Temperature : -10°C To +55°C
  • Max Humidity : 95% Rh Non Condensing
  • IP Rating : IP21C
  • Size :
    • Font Plate: 105x 105 x 56mm
    • With Back Box - 105 X 105 X 89mm
  • Weight : 210g

Downloads
