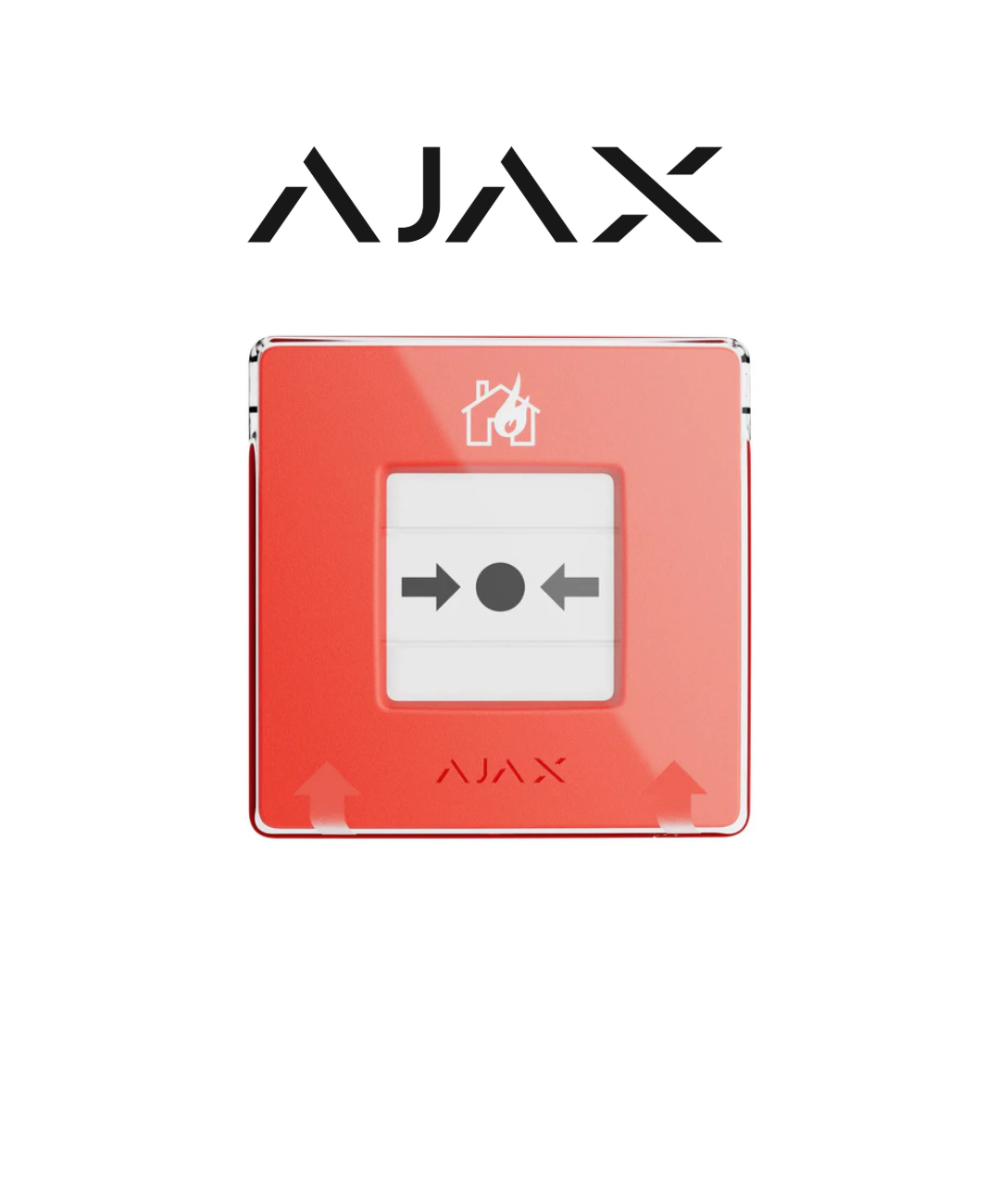

Ajax EN54 Manual CallPoint (60815)

The Ajax ManualCallPoint provides a fast, reliable way to manually trigger a fire alarm in emergency situations. With a single press, it activates the sirens of all connected fire detectors, instantly alerts users, and notifies the Central Monitoring Station (CMS) to initiate emergency response.

Designed for both safety and simplicity, ManualCallPoint integrates seamlessly with the Ajax ecosystem. All alarm details — including the triggered device, time, and location — are immediately available in the Ajax app. Advanced automation scenarios can respond within seconds by cutting power, activating emergency lighting, and unlocking exits to support safe evacuation.

Built using high-quality components and advanced wireless technology, ManualCallPoint delivers professional-grade reliability with long battery life and fast signal transmission.

Key Features:

• Manual fire alarm activation with a single press

• Triggers all Ajax fire detector sirens instantly

• Sends alerts to users and Central Monitoring Station (CMS)

• Real-time event details available in Ajax apps

• Supports automation scenarios for emergency response

• Reliable wireless communication with long range

• Easy installation and maintenance

Technical Specifications:

• Operating modes: Fire alarm or scenario trigger

• Compatibility: Hub Plus, Hub 2, Hub 2 Plus

• Alarm signal delivery time: 0.15 seconds

• Communication range: Up to 1,700 m (open area)

• Battery life: Up to 3 years

• Dimensions: 102 × 104 × 39 mm

• Battery: 2 × CR123A lithium batteries (included)
