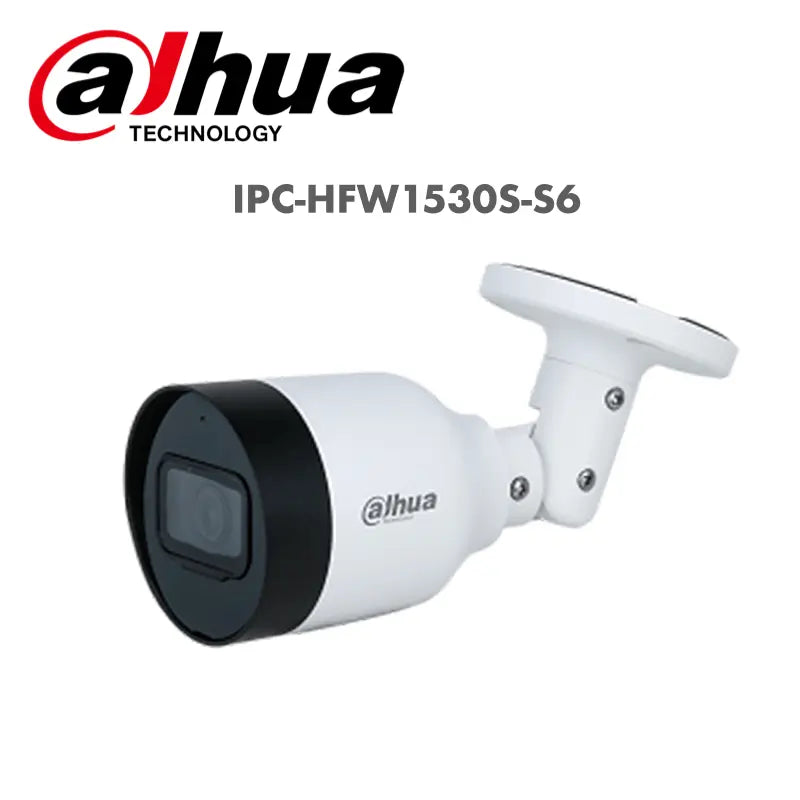

Dahua 5MP Entry IR Fixed-focal Bullet Network Camera IPC-HFW1530S-S6

Model No: DHI-IPC-HFW1530S-S6

  • Sku: DHI-IPC-HFW1530S-S6
£58.00 GBP
Tax included.
Shipping calculated at checkout.
Color

Description

Description
The IPC-HFW1530S-S6 is a 5MP Entry IR Fixed-focal Bullet Network Camera designed for reliable surveillance in both residential and commercial environments. It features a 1/2.7" CMOS sensor that delivers high-definition images even in low-light conditions. The built-in IR LED provides up to 30 meters of night vision, ensuring continuous monitoring around the clock. With H.265 video encoding and Smart H.264+/H.265+ support, the camera offers efficient bandwidth usage and reduced storage requirements while maintaining excellent image quality.

Equipped with flexible ROI, rotation mode, DWDR, 3D NR, HLC, BLC, and digital watermarking, the camera ensures clear and precise visuals in varied conditions. It also supports abnormality detection for motion, video tampering, audio, network disconnection, IP conflicts, and unauthorized access. With a built-in microphone, IP67-rated housing, and 12 VDC/PoE power options, this camera provides robust performance and easy installation for secure monitoring.

Key Features

  • 5MP 1/2.7" CMOS sensor, max. 2880 × 1620 @20 fps, supports 2688 × 1520 @25/30 fps
  • Built-in IR LED, up to 30 m illumination distance
  • Video encoding: H.265, SMART H.264+/H.265+, ROI support
  • Image enhancements: Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking
  • Abnormality detection: Motion, video tampering, audio, network disconnection, IP conflict, illegal access
  • Built-in microphone
  • Power & protection: 12 VDC/PoE, IP67-rated housing

Specification

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2880 (H) × 1620 (V)

ROM

16 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.03 Lux@F2.0 (Color, 30 IRE)
0.003 Lux@F2.0 (B/W, 30 IRE)
0 Lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.43 ft) (IR)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

2.8 mm: F2.0
3.6 mm: F2.0

Field of View

2.8 mm: Horizontal: 106°; Vertical: 56°; Diagonal: 125°
3.6 mm: Horizontal: 92°; Vertical: 48°; Diagonal: 109°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.8 m (2.62 ft)
3.6 mm: 1.3 m (4.27 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

56.0 m (183.73 ft)

22.4 m

(73.49 ft)

11.2 m

(36.75 ft)

5.6 m

(18.37 ft)

3.6 mm

76.0 m (249.34 ft)

30.4 m

(99.74 ft)

15.2 m

(49.87 ft)

7.6 m

(24.93 ft)

Video

Video Compression

H.265; H.264; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream:
2880 × 1620 (1 fps–20 fps)
2688 × 1520 (1 fps–25/30 fps)
Sub stream:
704 × 576 (1 fps–25 fps)
704 × 480 (1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 2560 × 1440(2560 × 1440); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G.726; PCM

Alarm

Alarm Event

Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast

Interoperability

ONVIF (Profile S/Profile T); CGI; P2P; Genetec; Milestone

User/Host

6 (Total bandwidth: 48 M)

Storage

FTP

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

Basic: 1.9W (12V DC); 2.3W (PoE)
Max. (ICR + H.265 + max. resolution + main stream + DWDR + IR intensity): 3.9W (12V DC); 4.5W (PoE)

Environment

Operating Temperature

–40°C to +60°C (–40°F to +140°F)

Operating Humidity

≤95%

Storage Temperature

–40°C to +60°C (–40°F to +140°F)

Protection

IP67

Structure

Casing

Metal

Product Dimensions

162.1 mm × Φ70.1 mm (6.38" × Φ2.76")

Net Weight

0.32 kg (0.71 lb)

Gross Weight

0.45 kg (0.99 lb)



Datasheet

Data Sheet

DH-IPC-HFW1530S-S6_datasheet_20210204.pdf
