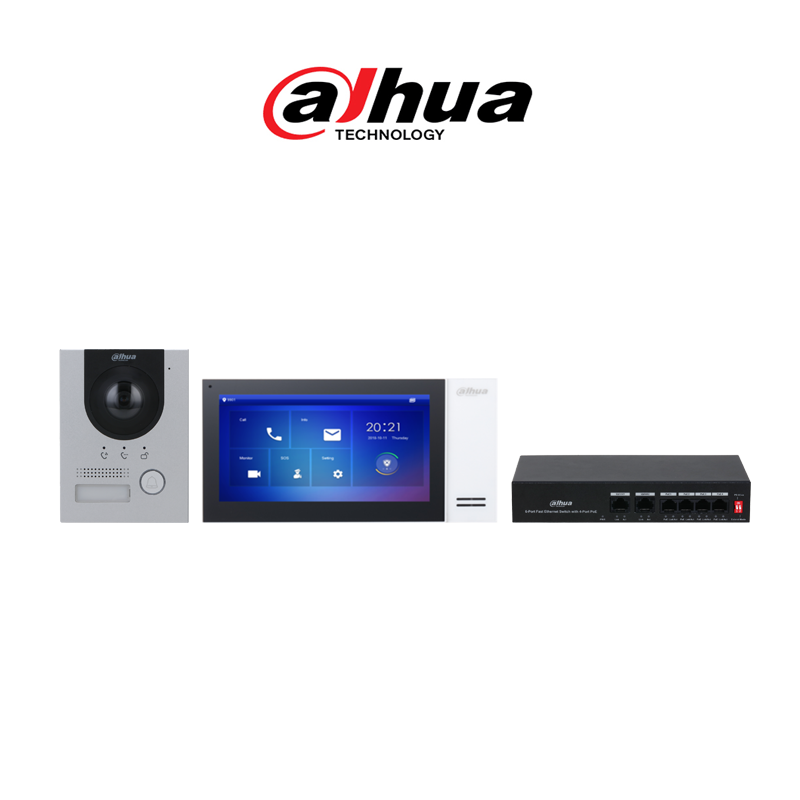

Dahua IP Villa Outdoor Station & Indoor Monitor KTP01L(S)
Model No: KTP01L(S)
- Sku: KTP01L(S)
✓ Anodized alumimum front panel
✓ CMOS low illumination 2MP HD colorful 140° camera
✓ Video intercom function
✓ Access control function that supports two locks
✓ Use the app to talk to visitors or unlock the door remotely on your phone.
✓ Surface mounted
✓ PoE
✓ IK07&IP65
IP Indoor Monitor
✓ 7" TFT capacitive touch screen
✓ 6-channel alarm input and 1-channel alarm output
✓ Supports standard PoE
✓ SOS alarm
✓ Supports daisy chain topology
Switch
✓ 4 PoE ports with 10/100 Mbps Base-TX
✓ 2 uplink ports with 10/100Mbps Base-TX
✓ Supports 250 m long distance PoE tansmission
|
DHI-VTO2201F-P |
|
|
System |
|
|
Main Processor |
Embedded processor |
|
Operating System |
Embedded Linux Operation System |
|
Button Type |
Mechanical |
|
Interoperability |
ONVIF; CGI |
|
Network Protocol |
RTSP; RTMP; HTTP/HTTPS; DNS; UPnP; RTP; SIP; SSH; ONVIF; P2P |
|
Basic |
|
|
Camera |
1/2.9" 2MP CMOS Low Illumination HD Colorful Camera |
|
Field of View |
Horizontal: 140°; vertical: 79.6; diagonal:159° |
|
Focal Length |
2.0 mm |
|
WDR |
120 dB |
|
Noise Reduction |
3D DNR |
|
Video Compression |
H.265 |
|
Video Resolution |
50Hz: |
|
Video Frame Rate |
25 fps |
|
Video Bit Rate |
256 kbps to 8 Mbps |
|
Light Compensation |
Auto IR |
|
Day/Night |
Auto (ICR) |
|
Audio Compression |
G.711a; G.711u; PCM |
|
Audio Input |
1 channel |
|
Audio Output |
Built-in speaker |
|
Audio Mode |
2-way voice communication |
|
Audio Enhancement |
Echo suppression/digital noise reduction |
|
Audio Bit Rate |
16 kHz, 16 Bit |
|
Status Indicator Light |
3 |
|
Port |
|
|
RS485 |
1 |
|
Alarm Output |
1 |
|
Power Output |
1-ch 12 VDC 100mA |
|
Exit Button |
1 |
|
Door Status Detection |
1 |
|
Lock Control |
1 |
|
Network Port |
One RJ45 10M/100M network port |
|
General |
|
|
Appearance color |
Silver |
|
Power Supply |
24 VDC 1A |
|
Power Adapter |
Optional |
|
Installation |
Flush/surface mount |
|
Certifications |
CE; FCC; UL |
|
Product Dimensions |
130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12") |
|
Protection |
IK07; IP65 |
|
Operating Temperature |
–30°C to +60°C (–22°F to 140°F) |
|
Operating Humidity |
10%–90% (RH, non-condensing) |
|
Operating Altitude |
0 m–3,000 m |
|
Power Consumption |
≤ 8 W |
|
Net Weight |
0.35 kg (0.77 lb) |
|
Gross Weight |
0.4 kg (0.88 lb) |
|
DHI-VTH2421FW-P |
|
|
System |
|
|
Main Processor |
Embedded processor |
|
Operating System |
Embedded Linux Operation System |
|
Button Type |
Touch keypad |
|
Interoperability |
ONVIF |
|
Network Protocol |
RTSP; RTP; SIP; DNS; SSH |
|
Basic |
|
|
Screen Type |
Capacitive |
|
Display Screen |
7-inch TFT |
|
Resolution |
1024 × 600 |
|
Audio Compression |
G.711a; G.711u; PCM |
|
Audio Input |
1 |
|
Audio Output |
Built-in speaker |
|
Audio Mode |
2-way voice communication |
|
Audio Enhancement |
Echo suppression |
|
Audio Bit Rate |
16 kHz, 16 Bit |
|
Communication Mode |
IP KIT |
|
Information Release |
Supports viewing text announcement from the center ( insert an SD card to receive and view pictures) |
|
Leave Videos |
Yes (SD card inserted in VTH is needed) |
|
Storage |
Micro SD, Max 64 GB |
|
Port |
|
|
RS-485 |
1 |
|
Alarm Input |
6 |
|
Alarm Output |
1 |
|
Power Output |
1, 12V/100 mA |
|
Door Bell |
Yes, reusing any alarm input port |
|
Network Port |
One 10 Mbps/100 Mbps Ethernet port |
|
General |
|
|
Casing |
PC + ABS |
|
Appearance color |
White |
|
Power Supply |
12 VDC 1A Standard PoE |
|
Power Adapter |
Optional |
|
Installation |
Surface mount |
|
Certifications |
CE; FCC; UL |
|
Accessory |
Bracket (standard) |
|
Product Dimensions |
189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" × 1.06") |
|
Operating Temperature |
–10°C to +55°C (14°F to 131°F) |
|
Operating Humidity |
10%–95% (RH, non-condensing) |
|
Operating Altitude |
0 m–3,000 m |
|
Power Consumption |
Standby ≤ 2W, working ≤ 6W |
|
Net Weight |
0.388 kg (0.86 lb) |
|
Gross Weight |
0.74 kg (1.63 lb) |
|
DH-PFS3006-4ET-36 |
|
|
General |
|
|
Network Port |
Port1-4: 4 × RJ-45 10/100 M (PoE) |
|
Appearance color |
Black |
|
Power Supply |
100–240 VAC |
|
PoE Budget |
Port1-4 ≤30 W, whole PoE budget ≤36 W |
|
Certifications |
CE; FCC; UL |
|
Product Dimensions |
194.0 mm × 108.1 mm × 35.0 mm (7.64" × 4.26" × 1.38") |
|
Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
|
Operating Humidity |
10%–95% (RH) (non-condensing) |
|
Operating Altitude |
0–3,000 m (0–9,842.52 ft) |
|
Net Weight |
0.56 kg (1.23 lb) |
KTP01L_datasheet_20221215.pdfHave a question?
