NVR304-E2-P Series

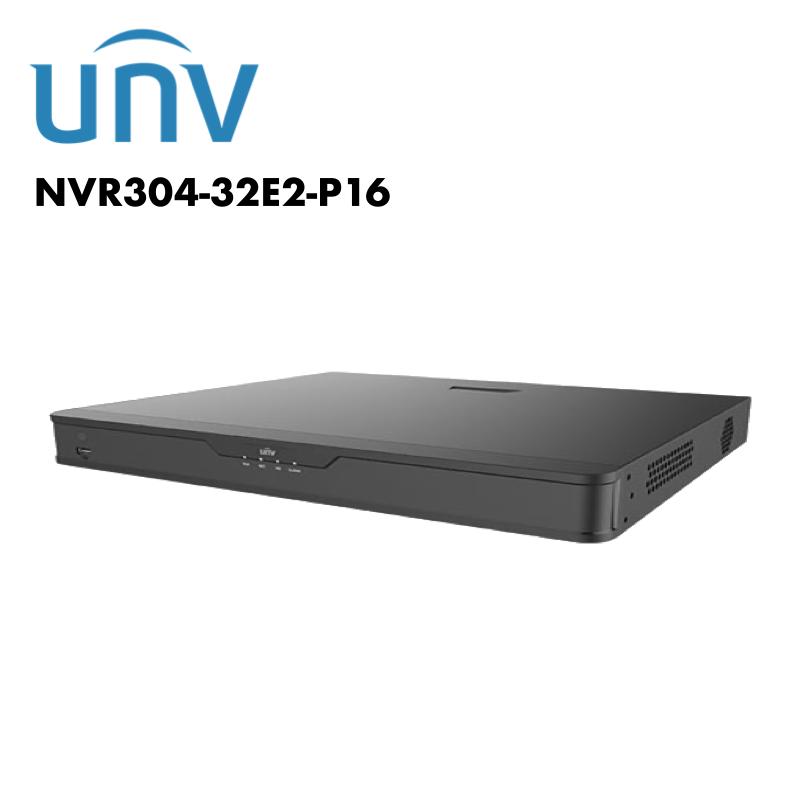

The Uniview UV-NVR304-32E2-P16 is an advanced 32-channel network video recorder with AI technology, designed for extensive surveillance systems. It supports various video formats such as Ultra H.265, H.265, and H.264, providing flexibility in camera compatibility and maximizing storage space. The NVR304 series includes the NVR304-16E2-P16 and NVR304-32E2-P16 models, both equipped with high-capacity storage for optimal performance.

Key Features and Specifications:
Channel Input: The NVR304-16E2-P16 model supports 16 IP video inputs, while the NVR304-32E2-P16 model doubles this capacity with 32 channels, making them suitable for medium to large surveillance setups.

PoE Network Interfaces: Both models are equipped with 16 independent PoE (Power over Ethernet) interfaces, facilitating easy installation and power management of IP cameras.

Camera Compatibility: These NVRs are compatible with mainstream cameras adhering to ONVIF conformance (Profiles S, G, T) and support RTSP protocols, ensuring a wide range of camera integration options.

High-Resolution Recording and Output: Both models support up to 12 Megapixels resolution recording. HDMI output can go up to 4K (3840x2160) resolution, providing crisp and clear video playback and live viewing.

Storage and Backup: Equipped with 4 SATA interfaces, each model can support up to 10TB per HDD, with total storage expansion up to 40TB. They also support RAID 1,5 configurations, enhancing data integrity and fault tolerance.

Advanced Video Content Analysis (VCA): Features like intrusion detection, cross-line detection, and auto tracking are supported, enabling intelligent surveillance and efficient monitoring.

People Counting and Crowd Density Monitoring: These smart features provide valuable data for retail and public spaces, helping in resource allocation and safety management.

External Interface and Network Features: Both models come with comprehensive interface options including USB ports for data backup and firmware upgrades, RS485 for PTZ control, and alarm in/out ports for event management. They support a wide array of network protocols and services for seamless integration and remote access.

Power and Environmental Conditions: With a power supply ranging from 100 to 240V AC, these NVRs are designed to operate in a wide range of environmental conditions, from -10°C to +55°C, and are housed in a durable chassis that supports a high degree of physical security.

The NVR304 series encompasses the NVR304-16E2-P16 and NVR304-32E2-P16, two highly adaptable and resilient network video recorders designed for advanced surveillance systems that demand exceptional video resolution, ample storage space, and advanced video analysis features. Boasting support for multiple camera protocols and reinforced data security through RAID configurations, these NVRs are suitable for a wide range of environments, such as commercial, industrial, and public sectors.
