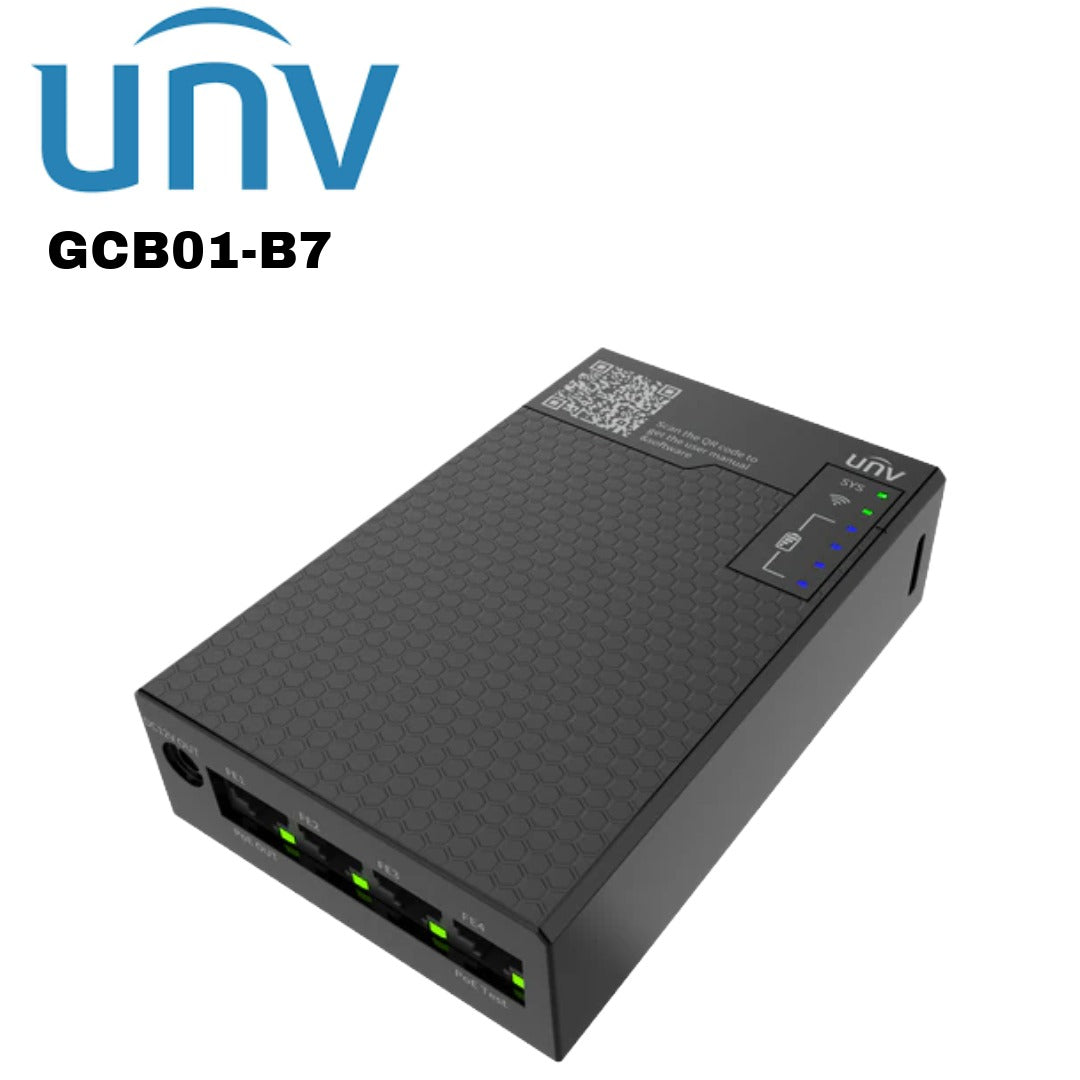

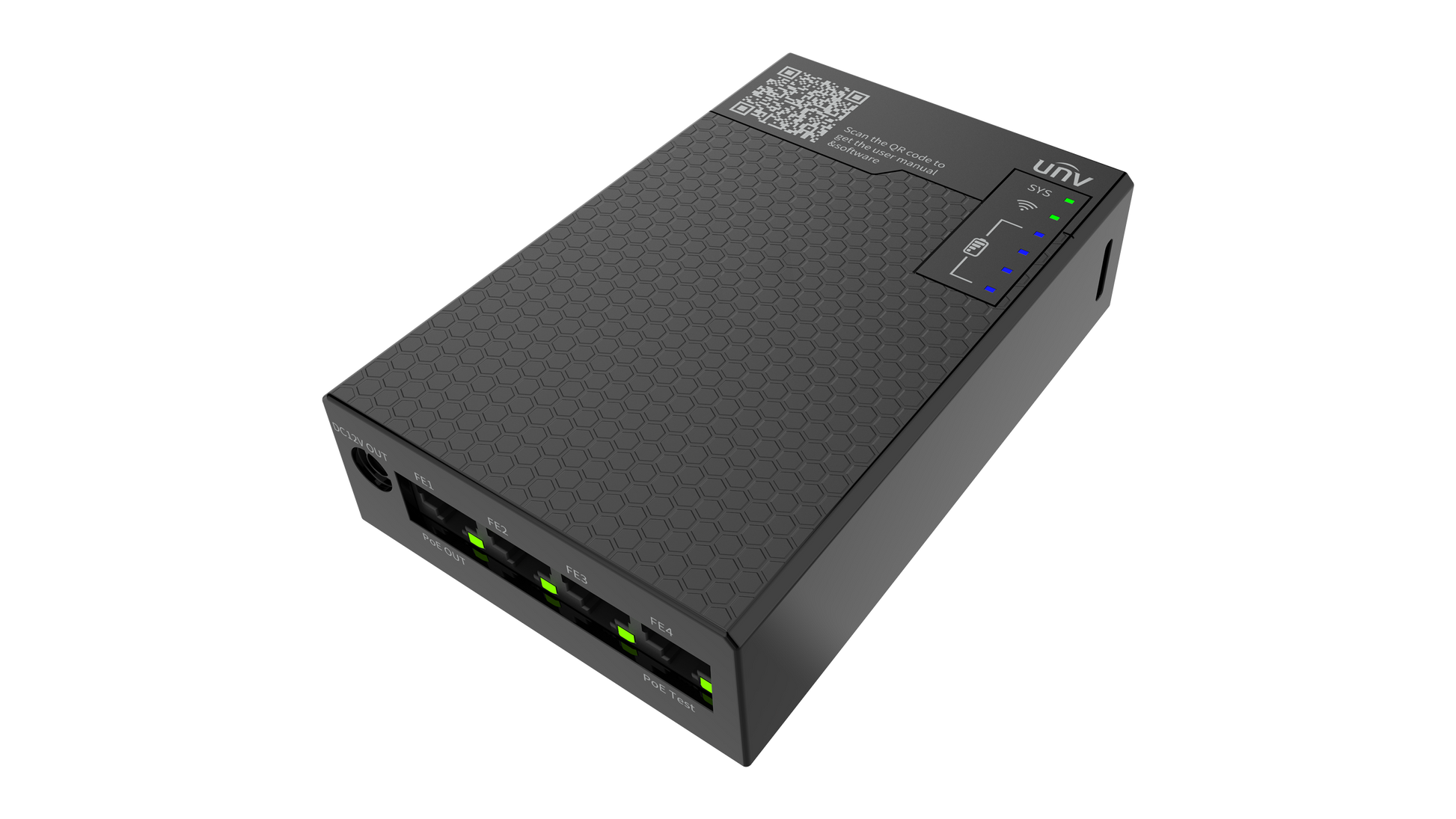

Uniview UNV-Link Pro Connect Box UV-GCB01-B7

Overview

The Uniview GCB01‑B7 (UNV‑Link Pro Connect Box) is a versatile, portable installation & testing tool for IP cameras. Powered by a high‑capacity battery and fitted with Ethernet, PoE, WiFi hotspot, and voltage test features, it enables engineers and installers to set up, configure, test, and troubleshoot cameras efficiently.

Key Features

• 4 × RJ45 Ethernet Ports
  Includes one port with PoE (Power over Ethernet) output (IEEE‑802.3af) to power compatible cameras directly.

• Voltage Testing
  Built‑in PSE voltage test (range 1‑56V, supports standards IEEE‑802.3af / at / bt) and DC voltage test (1‑56V) allow you to diagnose power issues easily.

• WiFi Hotspot / App Connectivity
  Built‑in 2.4 GHz WiFi (IEEE‑802.11b/g/n) hotspot allows connection to your smartphone via the UNV‑Link Proapp for live view, IP configuration, settings & more — without needing external network or power sources.

• Multiple Power Outputs & Battery Power
  Powered by a 7,500 mAh (18650 lithium) internal battery for field use. Includes:
  • USB‑C input (5V / 2A) to charge the box itself.
  • DC 12V / 1A output (for non‑PoE cameras) and USB‑A output (5V / 1A) for smaller devices.

• Robust & Field‑Ready Design
  Operates safely in temperatures from ‑20 °C to +60 °C; humidity up to 95% RH (non‑condensing). LED indicators for system status, battery level, WiFi, etc. Compact size (≈ 130 × 85 × 33 mm) and portable.

• Reset / Diagnostic Tools
  Reset button for device reset. Real‑time diagnostics via voltage and network tests. Helps speed up installation & troubleshooting.
