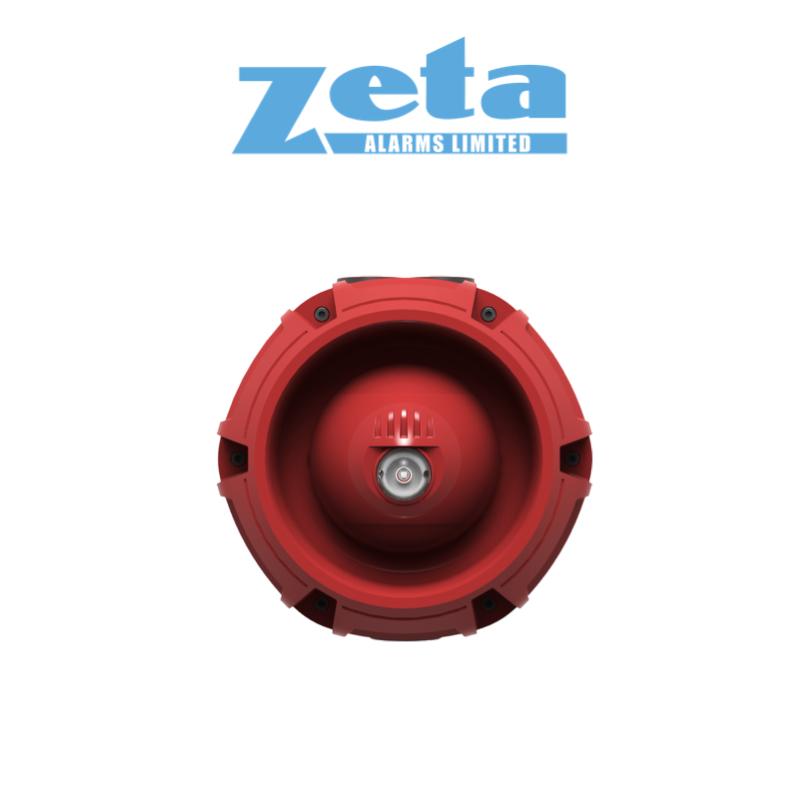

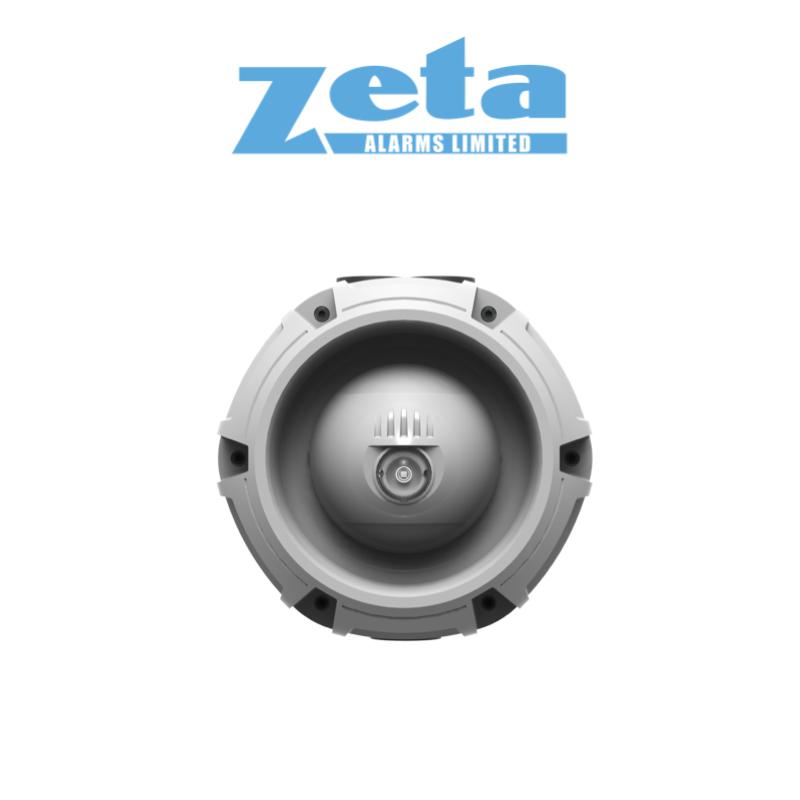

Zeta Alarm Raptor MKII Addressable Weatherproof Combined Sounder & Beacon in Red or White ZRAPB

Model No: ZRAPB

  • Sku: ZRAPB/W
£70.38 GBP
 per
Tax included.
In stock!
Color

Description

  • Complies with EN54 Pt 3 Type B & EN54 Pt 23.
  • 107dB +/- 3dB @ 1m sound output.
  • 16 Tone patterns (site selectable).
  • Suitable for surface mounting only.
  • Housed in UL V0 flame retardant ABS.
  • 3 x 20mm cable entries (2 top, 1 bottom).
  • First fix, wire to back box technology.
  • Flashing rate 0.5Hz.

Specification

  • Voltage : 17 - 28V DC
  • Quiescent Current : 1.5mA
  • Alarm Current : 18-43mA
  • Flash Colour : White
  • Flash Frequency : 0.5Hz
  • Body Colour : Red or White
  • Sounder Type : B
  • IP Rating : IP 65
  • Operating Temperature : -10ºC to 55ºC
  • Sound Output @ 1m : 100dB
  • Size mm : 150 x 146 x 107.5
  • Weight : 550g
