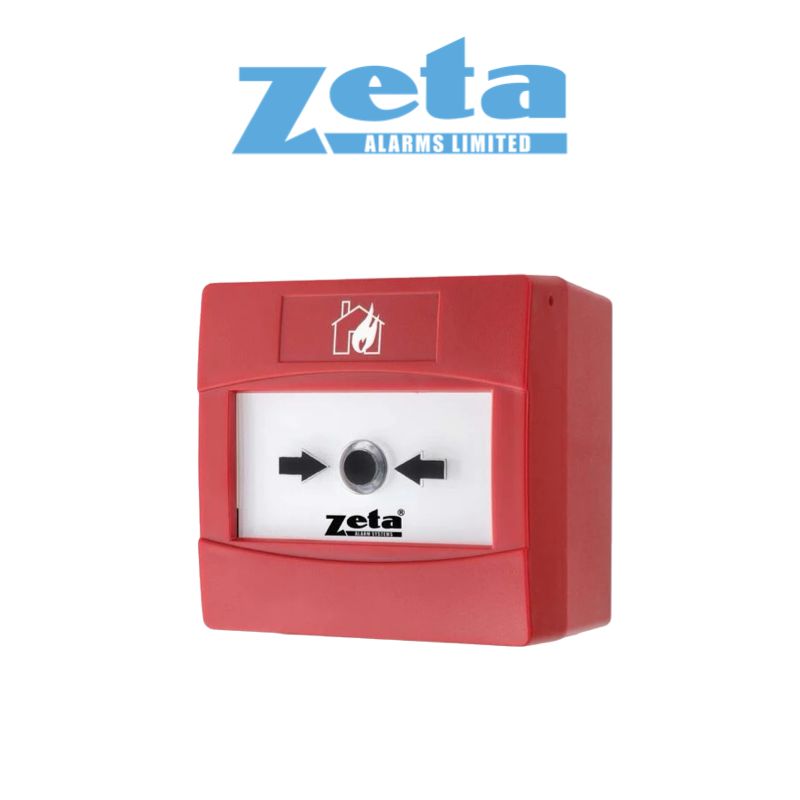

Zeta CP4 Conventional Manual Call Point ZT-CP4

Features

• EN54-11 approved.
• Very high visibility of the alarm condition.
• New efficient and reliable mechanism.
• High impact resistant ABS glass fiber material Fully patented.
• Quick and Easy Installatio




• Summary

  The ZT-CP4 is a resettable manual call point that boasts innovative and unique features. It has been meticulously designed to maximize visibility, ensure reliable operation, and present a pleasing aesthetic.



  When pressed, the resettable element emulates the sensation of breaking glass as it returns to its original position. With a new and efficient action system, this manual call point ensures reliable alarm detection in any situation, delivering exceptional performance.

  A polyester flag is located in the bottom of the operating face, ensuring optimal visibility for the user. The call point's patented design utilizes a spring-free mechanism to activate both the flag and the switch, providing reliable and long-lasting operation.

  Specifications

  • Maximum Voltage : 30V
  • Minimum Voltage :
    • Indoor (ZT-CP4 & ZT-CP4/F) :
      • 4.5V if LED with R1 is chosen
      • 6.0V if LED withh R2 is chosen
    • Outdoor (ZT-CP4/WP) :
      • 5.0V if LED with R1 is chosen
      • 6.0V if LED with R2 is chosen
  • Current Rating (non-operated) : 0mA
  • Current Rating (operated) :
    • Indoor (ZT-CP4 & ZT-CP4/F) :
      • 18 mA @ 12V – R1
      • 13 mA @ 12V – R2
      • 45 mA @ 24V – R1
      • 31 mA @ 24V – R2
    • Outdoor (ZT-CP4/WP) :
      • 19 mA @ 12V – R1
      • 13 mA @ 12V – R2
      • 45 mA @ 24V – R1
      • 31 mA @ 24V – R2
  • Cable Termination : 0.5 – 2.5 mm²
  • Operating Temperature : -30 / +70°C
  • Humidity : 0 – 95%
  • IP Rating :
    • Indoor (ZT-CP4 & ZT-CP4/F) : IP42
    • Outdoor (ZT-CP4/WP) : IP67
  • Material : ABS/Polycarbonate/PA6 + Glass Fiber
